iseCONTROL
Our own control platform combines electronics, firmware and operation. FPGA technology is also part of isePRINT's control architecture.
Explore the controller familyisePRINT S · Industrial 3D printer
Industrial 3D printer.
Our own controller.
Visible results.
With isePRINT S, we bring our control technology into industrial manufacturing. Our own electronics, firmware and motion control work together in a complete machine, in use at MTU Maintenance Hannover directly in shift-based production.
From €14,900 excluding VATplus statutory VAT; delivery and commissioning excluded
400 × 400 × 400 mmBuild volume for your parts
iseCONTROL + iseMOTIONOur own controller and motion control
In shift operationIn use at MTU Maintenance Hannover
Customer application · MTU Maintenance Hannover
In use.
In the middle of production.

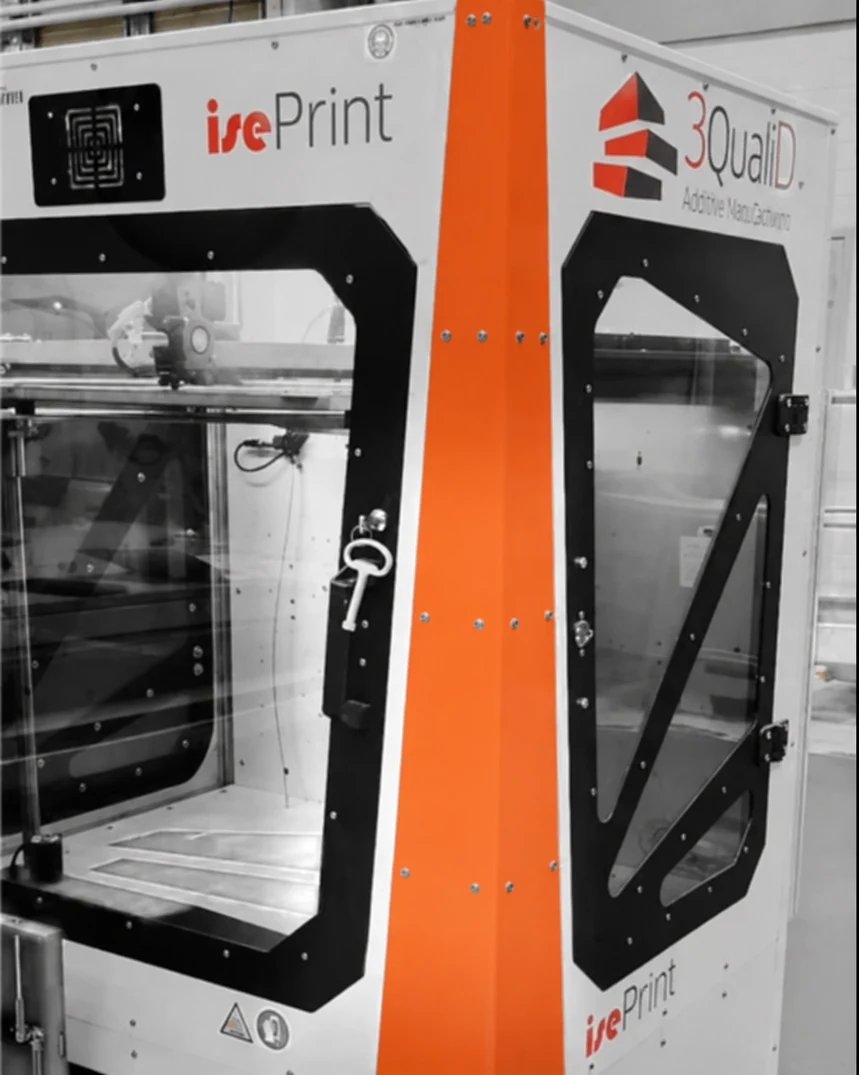

At MTU Maintenance Hannover, the 50 × 50 × 50 cm version of isePRINT is used in shift-based production. Our control technology is therefore used in everyday industrial operations.
The collaboration began with a pre-production project. Today, isePRINT demonstrates how motion control, operation and mechanics work together in a complete machine.
Read about the start of the MTU projectDo you develop machines yourself?
Our experience with isePRINT informs our control solutions for manufacturers of series-production machines.
iseCONTROL for your machineCompare print results
Same printing time.
Visible difference.
Each of the two comparison prints was produced in 30 minutes. The original photographs show the differences in contours and surfaces. Move the slider or dividing line to compare the aligned cubes directly.
Comparison system30 minutes of printingisePRINT S30 minutes of printing
In-house development · Made in Germany
The controller makes
the difference.
isePRINT is a practical example of our capabilities as control system developers: from electronics and motion data processing to the user interface. Development, manufacturing and regional partners work hand in hand.
iseMOTION
Motion control with FIR filtering enables tailored acceleration profiles. This supports smoother movements and clean contours during printing.
Explore motion controlOperation and machine
Made in Germany: developed and manufactured in Germany with regional partners. isePRINT meets the applicable EU machinery requirements. A touchscreen, automatic levelling and an enclosed build volume with filtered exhaust air complement the controller to create an industrial 3D printing machine.
Experience the machine on siteVideo: a look inside our controller
Technical data of the isePRINT S
- Printing process
- Material extrusion (MEX), Fused Filament Fabrication (FFF / FDM)
- Build volume
- 400 × 400 × 400 mm; enclosed, with filtered exhaust air
- Filament diameter
- 1.75 mm; no restriction to a single filament manufacturer
- Nozzle temperature
- Up to 300 °C
- Build platform
- Up to 140 °C; magnetic and replaceable
- Levelling
- Fully automatic build plate levelling
- Operation
- iseCONTROL with 10.1-inch LCD touchscreen
- Data transmission
- LAN, Wi-Fi and USB
- External dimensions (H × W × D)
- 940 × 870 × 900 mm
- Weight
- 40 kg
We coordinate equipment and materials with you based on your components and requirements.
Download data sheet (PDF)Consider material and process together
From filament
to the finished part.
isePRINT uses 1.75 mm filament without restriction to a single manufacturer. We use a test print to select the right material for your part's geometry and requirements.
Experience with metal-filled filament too
At MTU, our printer was used with metal-filled BASF filament as well as plastic. This first produces a so-called green part. It only becomes the metal component after subsequent debinding and sintering outside the printer.
We currently have no proven replacement for the BASF material previously used. For new metal applications, we assess the material and the entire process from printing through to sintering.
Machine and support
isePRINT S.
From €14,900 excluding VAT.
The starting price excludes statutory VAT, delivery and commissioning.
If you wish, you can choose a five-year Silver, Gold or Platinum service package. The packages have different scopes of service and are quoted individually.
isePRINT S · Service package
Silver
Support and commissioning
- Support from our developers over five years
- Delivery and commissioning on site
A maintenance contract is not included.
Enquire: SilverisePRINT S · Service package
Gold
Also includes maintenance
- Support from our developers over five years
- Delivery and commissioning on site
- Five-year maintenance contract including spare parts, excluding wear parts
Travel costs for maintenance are not included.
Enquire: GoldisePRINT S · Service package
Platinum
Maintenance including travel expenses
- Support from our developers over five years
- Delivery and commissioning on site
- Five-year maintenance contract including spare parts, excluding wear parts
- Travel expenses for maintenance included
We specify the scope of services and configuration in your individual quotation.
Enquire: PlatinumTest print and showroom in Wannweil
Bring your component.
We will show you isePRINT.
Send us your part file and requirements for a test print. Or arrange an appointment at our showroom to experience the printer in person.
Looking for the right controller for a machine of your own? We can help with that too.
